Reliable Enclosure Solutions Fonto 5000 / FONTO 5000.R

Floor socket outlet with screwable lid and water protection shroud (Levelling support available optionally)

Technical data

Round version (Ø × H): 156 × 95 mm
Rectangular version Fonto 5000.R (L × W × H): 156 × 156 × 95 mm
Diameter: 156 mm
Mounting depth: approx. 95 mm (standard version)
Material: Aluminium, colourless anodised (corrosion-resistant)
IP Protection Class Closed mode: IP67 – suitable for cleaning with wet sweepers
With water protection pipe: IP67 – resistant to water height up to 14 mm
Cover Details: Type: Screwable, removable lid
Cable Outlet: Yes
Feed-in Cable Entries: 4 × M32
Load Capacity (closed mode): 40 kN
Level Adjustment Post-Installation: Not supported
Levelling Support: Available (optional)

Remarks / Features

Flush-mounted floor socket equipped with an integrated water protection shroud (stored inside the socket when not in use)
Accommodates 2× 45×45×4 mm inserts and 2× 22.5×45×4 mm inserts (e.g., Schuko, RJ45, etc.)
Water protection pipe retracts into the floor box when unused
Designed to withstand foot traffic even while in plugged-in mode

FONTO 5000 Floor socket outlet with screwable lid and water protec- tion shroud, closed IP67, anodised aluminium, 156×156×95 mm

Please note:

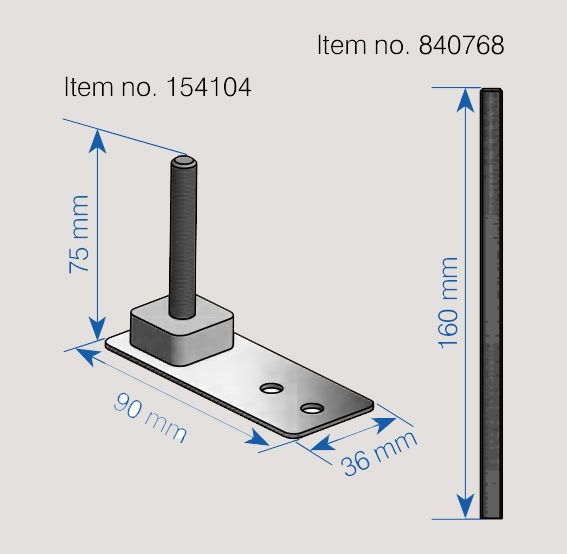

Levelling feet are only used for setting the floor socket outlet. load capacity / stability is only obtained by backfilling the floor socket outlet with stable material (mortar, concrete…
